75000 PPH, Babcock & Wilcox,
Location:
Fremont, CA
Manufacturer:
PPM boilers

Specifications

Condition:
used
Stock number:
695
#2 oil:
655 GPH @ 150 PSIG
Division:
Electrical Power
Feedwater:
2½"-600# FLG
Main steam:
8"-600# FLG
Natural gas:
92,500 SCFH (w/ economizer)
#2 oil supply:
1" NPT / 1¼" NPT
Chemical feed:
½" NPT
Natural gas 2:
4"-150# FLG
Instrument air:
½" NPT
Atomizing steam:
2" NPT / 1" NPT
Bottom blowdown:
1½"-600# FLG
Nox (corr. to 3:
30 ppm
Shipping weight:
106,600 lbs
Operating weight:
150,600 lbs
Water column drain:
¾" NPT
Continuous blowdown:
¾" NPT
Length / width / height:
46' 4" / 10' 0" / 14' 0"
Subcategory:
Boilers, watertube

Description

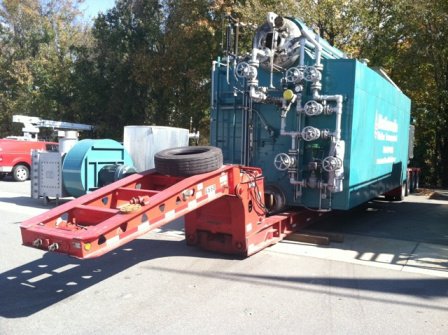

Nationwide Boiler’s low NOx, 75,000 pph, 750 psig design saturated, trailer-mounted pac
age watertube Babcock & Wilcox boiler is set to burn natural gas or #2 oil. It is fully piped and wi
ed and includes the following components:
Low NOx Burner
EconoStak Economizer
Burner Management System
Parallel Positioning Combustion Controls
Forced Draft Fan, Motor & Starter
Complete Fuel Train & Pilot Ignition System
Optional Fuel Oil Skid (for oil firing only)
Water Column & Site Glass
Steam Pressure Gauge
Low-water Cutoffs
Safety Valves
Feedwater Stop & Check Valves
Blowdown Valves
Continuous Blowdown Metering Valve
Chemical Feed Valve
Single Element Feedwater Regulator with Pre-piped
3-Valve Bypass
Steam Non-return Valve (loose)
Stack (loose)
NEMA 4 Electrical Enclosures
Low NOx CataStak™ SCR System (optional)
Weatherproofed (except for freezing)
Meets FM, NFPA 85 & IRI Insurance Standards
Operating Manuals
Fuel Consumption:
Natural Gas:92,500 SCFH (w/ economizer)
#2 Oil:655 GPH @ 150 PSIG
Connection Sizes:
Main Steam:8"-600# FLG
Natural Gas: 4"-150# FLG
#2 Oil Supply:1" NPT / 1¼" NPT
Feedwater:2½"-600# FLG
Bottom Blowdown:1½"-600# FLG
Continuous Blowdown:¾" NPT
Chemical Feed:½" NPT
Atomizing Steam: 2" NPT / 1" NPT
Instrument Air:½" NPT
Water Column Drain:¾" NPT
Electrical Power Service Requirements:
480 VAC, 3 ph, 60 hz, 125 amp
Boiler Dimensions & Weights:
Length / Width / Height:46' 4" / 10' 0" / 14' 0"
Shipping Weight:106,600 lbs
Operating Weight:150,600 lbs
Emissions Data (natural gas):
NOx (corr. to 3:30 ppm
