Location:
Elk Grove Village, IL, USA
Manufacturer:
BERTHIEZ
Model:

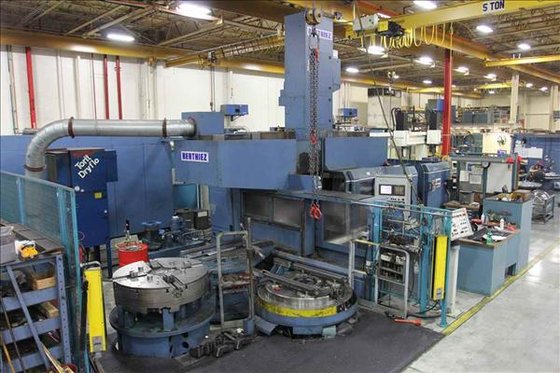

TVM1400/125 F2 TWIN PALLET CNC VERTICAL BORING MILL

Specifications

Condition:
used
Year:
1999
Stock number:
30783
Maximum swing:
53"
Milling speed:
2500 RPM
Milling tools:
CAT50
Turning speed:
550 RPM
Turning tools:
C5 Capto
Table diameter:
49"
B-axis rotation:
360° (.001° increments)
Turret configuration:
16 Turning/31 + 5 Milling Automatic

Description

Equipped With
Fanuc 16i-T CNC Control
(2) Pallet Changer w/ Set Up Station for Indicating/Clamping Outside Machine
Coolant Through Spindle
Renishaw Part Probing
Touch Tool Measuring
(1) Horizontal C5 Capto Main Block
(1) Vertical C5 Capto Main Block
(1) Probing Head
Dimensions and Weight
190"x 80"x 136"
4826mm x 2032mm x 3454mm
20000
9070 Kg
