Top Seller

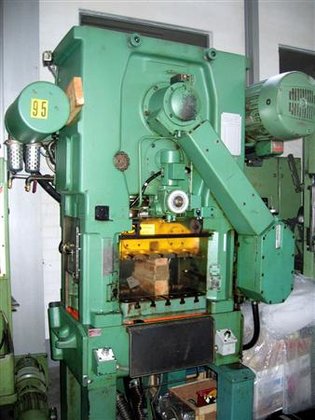

BRUDERER BSTA 25 HIGH SPEED
Location:
Switzerland
Manufacturer:
Bruderer presses
Model:
BSTA 25 HIGH SPEED PRESS
Capacity:
30 Ton
Stroke:
.5" - 1.5"

Specifications

Condition:
used
Year:
1978
Stock number:
22731
Bed area:
20.75" L-R x 20.75" F-B
Capacity:
30 Ton
Bed opening:
19.5" L-R x 8.25" F-B
Ram face area:
21" L-R x 14.17" F-B
Ram adjustment:
2"
Speed (variable):
100 - 1500 SPM
Shut height (sdau):
9.17"
Stroke (adjustable):
.5" - 1.5"
Feed length (adjustable):
0" - 3.35"
Maximum strip width (of bbv feed):
6.3"
Maximum strip thickness (of bbv feed):
.16"
Subcategory:
High-speed presses

Description

Equipped With
Bruderer Model BBV 190/85 Single Roll Feed (Feeds Right-to-Left)
Cylindrical Post Guides
T-Slotted Bolster Plate (3-3/8" Thick)
T-Slotted Bolster Plate ( 85.73mm Thick)
Vibratory Mounting Pads
Top Driven
Air Clutch and Brake with Selector Controls
Fan Cooled Oil Cooler
Electrical Console Controls
Hydrostatic Vari-Speed Drive
25 HP AC Main Drive Motor (220 Volts/60 Hz)
18.64 kw AC Main Drive Motor (220 Volts/60 Hz)
Dimensions and Weight
80"x 50"x 98"
2032mm x 1270mm x 2489mm
10000
4535 Kg
