Location:
Switzerland
Manufacturer:
Bruderer presses
Model:

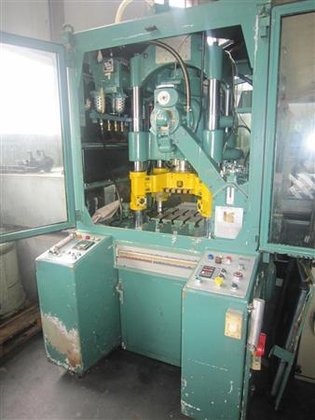

BSTA-20H HIGH SPEED PRESS
Capacity:
22 Ton
Stroke:
.32" - 1.5" (8 Adjustments)

Specifications

Condition:
used
Year:
1984
Stock number:
22970
Bed area:
22.06" L-R x 15.75" F-B
Capacity:
22 Ton
Ram face area:
19" L-R x 10.63" F-B
Opening in bed:
16" L-R x 3" F-B
Speeds (variable):
100 - 1800 SPM
Stroke (adjustable):
.32" - 1.5" (8 Adjustments)
Ram adjustment (power):
1.97"
Shut height (ram ldc, adj. up):
8.31" - 10.28" @ .32" Stroke
Subcategory:
High-speed presses

Description

Equipped With
Bruderer Model BBV 190/85 Single Roll Feed ( R to L )
Air Clutch and Brake with Selector Controls
No Foundation Required
Hydrostatic Drive
Hydraulic Ram Lift
Hydrostatic Vari-Speed Drive
Pushbutton Operation
Electrical Controls
Cylindrical Post Guides
Factory Sound Enclosure
Automatic Recirculating Lubrication System
Dimensions and Weight
58"x 70"x 96"
1473mm x 1778mm x 2438mm
8000
3628 Kg
