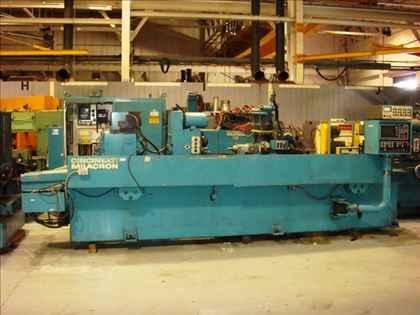

CINCINNATI MILACRON 480AH CYLINDRICAL ANGLEHEAD
Location:
Detroit, MI, USA
Model:
480AH CYLINDRICAL GRINDER

Specifications

Condition:
used
Year:
1988
Stock number:
26427
Spindle nose:
A1-6
Work center tapers:
#14 Jarno
Grinding wheel speed:
828 - 1,000 RPM
Grinding wheel width:
4"
Headstock speed range:
10 - 550 RPM
Grinding wheel diameter:
30"
Distance between centers:
60"
Maximum swing over table:
14.93"
Z-axis (table) feed rate:
400 IPM
Maximum gringing diameter:
14" (New Wheel)
Minimum grinding diameter:
.65" (Worn Wheel)
X-axis (wheel head) feed rate:
250 IPM

Description

Equipped With
Cincinnati Acramatic 700G Control System
Live/Dead Workhead; Hydraulic Tail Stock
Variable Speed Head Stock; Truing Attachment
Grinding Wheel Spindle Balancer
25 HP AC Main Spindle Motor
18.64 kw AC Main Spindle Motor
Electrical Controls
Dimensions and Weight
230"x 114"x 72"
5842mm x 2896mm x 1829mm
24000
10884 Kg
