Location:
Elk Grove Village, IL
Model:

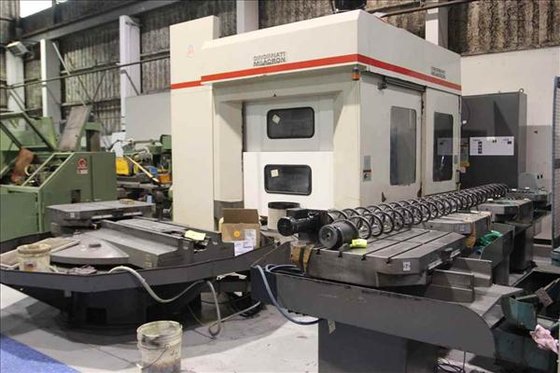

MAGNUM 800 HORIZONTAL MACHINING CENTER
Spindle Taper:
CAT50

Specifications

Condition:
used
Year:
1995
Stock number:
30455
Feed rates:
709 IPM
Pallet size:
31.5" x 31.5"
Spindle speed:
6500 RPM Maximum
Spindle taper:
CAT50
X-axis travel:
51.2"
Y-axis travel:
43.3"
Z-axis travel:
44.3"
B-axis indexing:
Max tool length:
19.7"
Max tool weight:
66 Lbs
Chip-to-chip time:
10 Seconds
Maximum workpiece:
51.2" Dia. x 45.3" Height
Number of pallets:
7
Pallet weight capacity:
3000 Lbs
Tool changer positions:
135
Max tool diameter (full):
4"
Spindle to top of pallet:
2" - 45.3"
Spindle nose to table center:
7.9" - 52.2"
Max tool diameter (adjacent pockets empty):
11.8"

Description

Equipped With
Acramatic 950 CNC
135-ATC Automatic Tool Changer
50 HP Main Spindle Motor
37.29 kw Main Spindle Motor
High Pressure Thru Spindle Coolant
Chip Conveyor
Assorted Tool Holders
Dimensions and Weight
138"x 96"x 134"
3505mm x 2438mm x 3404mm
28000
12698 Kg
