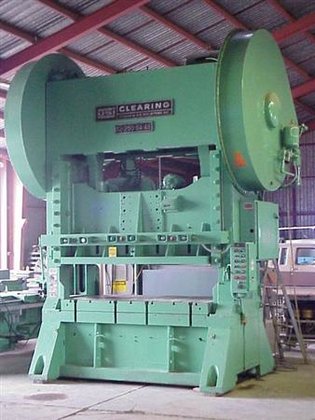

1968 CLEARING/BLISS S2-250 CLEARING MECHANICAL
Location:
United States
Manufacturer:
Bliss presses
Model:
S2-250 CLEARING MECHANICAL STRAIGHT SIDE PRESS
Capacity:
226.78 Metric Ton
Stroke:
304.80mm

Specifications

Condition:
used
Year:
1968
Speed:
30 SPM
Terms:
F.O.B.
Stroke:
304.80mm
Weight:
38094 Kg
Bed area:
2133.60mm L-R x 1219.20mm F-B
Capacity:
226.78 Metric Ton
Bed height:
854.08mm
Dimensions:
3353mm x 2743mm x 4674mm
Slide face area:
2133.60mm L-R x 1219.20mm F-B (T-Slotted)
Flush floor design:
yes
Tie rod construction:
yes
Motorized slide adjustment:
279.40mm
Shut height over bed (sdau):
812.80mm
Enclosed gears running in oil:
yes
Arranged for (4) knockouts f-b:
yes
Air friction clutch and brake with selector controls:
yes

Description

(2) Air Counterbalance Cylinders to Slide
T-Slotted Bolster 152.40mm Thick)
T-Slotted 254.00mm Ram Adaptor
Automatic Lubrication System
AC Main Drive Motor
Electrical Controls
