Location:
United States
Price:
No price
Manufacturer:
Eagle
Model:

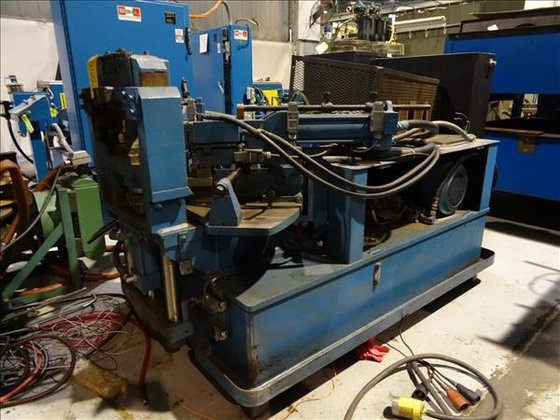

EAGLE TC/TC HYDRAULIC TWIN HEAD TUBE TRIMMER AND CUT-OFF
Capacity:
3" O.D. (Max)

Specifications

Condition:
used
Year:
1990
Stock number:
24847
Capacity:
3" O.D. (Max)
Average cycle time:
2 Seconds
Ram stroke (adjustable):
2" to 9"
Vise stroke (adjustable):
1" to 3-3/4"
Subcategory:
Tube cut-offs

Description

Equipped With
Quick Change Tooling System
Self-Contained Hydraulic Power Unit
15 HP AC Main Pump Motor
11.19 kw AC Main Pump Motor
Electrical Controls
* THE TC TYPE MACHINE AND INTERCHANGEABLE TOOLING WILL
SQUARE END TRIM, ANGLE CUT, RADIUS END CUT AND
RADIUS SCALLOP
* PLUS A VARIETY OF OTHER TUBE WORKING OPERATIONS INCLUDING
SCARFING OF WELD BEAD, NOTCHING AND PIERCING.
(SOME WITH SPECIAL OPTIONAL EQUIPMENT)
Dimensions and Weight
96"x 64"x 60"
2438mm x 1626mm x 1524mm
5000
2268 Kg
