Location:
Elk Grove Village, IL
Manufacturer:
FEMAS
Model:

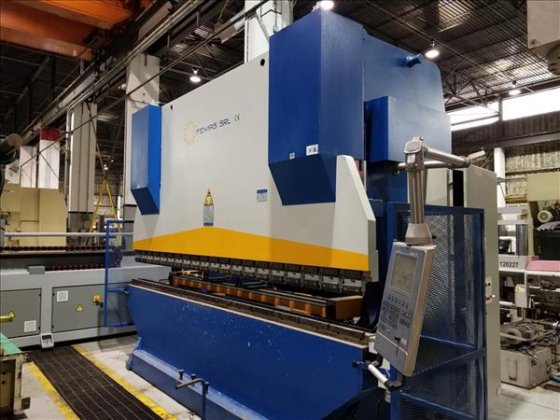

PHS-260 SYNCHRO HYDRAULIC 6-AXIS CNC PRESS BRAKE
Stroke:
11.8"
Capacity:
286 Ton

Specifications

Condition:
used
Year:
2006
Stock number:
32106
Capacity:
286 Ton
Open height:
19.7"
Return speed:
213 IPM
Working speed:
16 IPM
Approach speed:
213 IPM
Depth of throat:
19.7"
Overall bending length:
13'5"
Distance between housings:
10'
Adjustable stroke of upper beam:
11.8"
Subcategory:
Brakes, hydraulic

Description

Equipped With
6-Axis Cybelec Modeva 10S CNC Control
4-Axis Unimec Backgauge
GIMEC Tablus CRM 60/90 Crowning Device
30 HP Main Motor
22.37 kw Main Motor
No Pit Required
Dimensions and Weight
190"x 90"x 134"
4826mm x 2286mm x 3404mm
55000
24943 Kg
