Location:
United States
Price:
No price
Manufacturer:
Fuji lathes
Model:

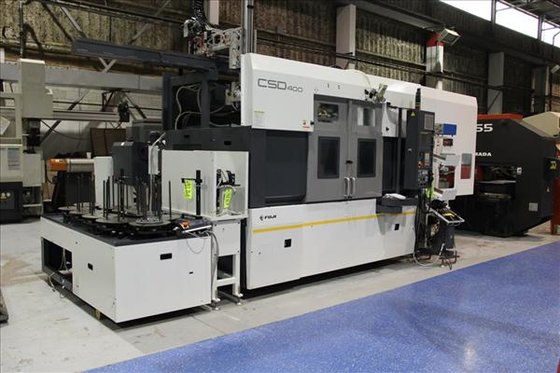

CSD-400 PARALLEL TWIN SPINDLE CNC LATHE
Spindle Bore:
2.64"
Spindle Nose:
A2-8

Specifications

Condition:
used
Year:
2013
Stock number:
32768
Spindle bore:
2.64"
Spindle nose:
A2-8
X-axis travel:
7.68"
Z-axis travel:
12.4"
Spindle diameter:
4.72"
Maximum spindle speed:
2,200 RPM
Recommended work size:
5.91" Diameter x 11.81" Length

Description

Equipped With
Fanuc 0i-TD CNC Control
(2) 25 HP Spindle Motors
(2) 18.5 kw Spindle Motors
(2) 12-Position Turret Tool Stations
Filtration Conveyor System
Rear Discharge Chip Conveyor
Dimensions and Weight
220"x 98"x 120"
5588mm x 2489mm x 3048mm
14000
6349 Kg
