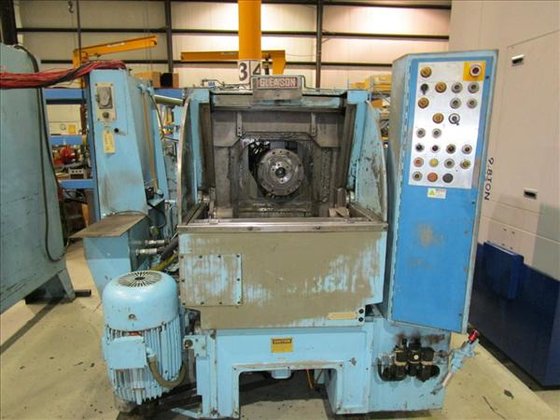

1976 GLEASON 506 MODEL GEAR
Location:
United States
Model:
506 MODEL GEAR LAPPER

Specifications

Condition:
used
Year:
1976
Terms:
As Is, Where Is
Weight:
6803 Kg
Brake load:
2.26 nM - 22.6 nM
Dimensions:
2134mm x 2438mm x 1753mm
Maximum gear od:
508.00mm
Pinion shank length:
96.52mm x 76.20mm
Maximum pinion diameter:
254.00mm
Gear spindle nose to gear axis minimum / maximum:
114.30mm / 190.50mm
Pinion spindle nose to gear axis minimum / maximum:
165.10mm / 304.80mm
Offset of pinion spindle center to center of gear spindle:
76.20mm Maximum
Subcategory:
Gear testers

Description

Hydraulic Unit
Oil Chiller
Enclosure
