Location:
Elk Grove Village, IL, USA
Manufacturer:
Hyundai lathes
Model:

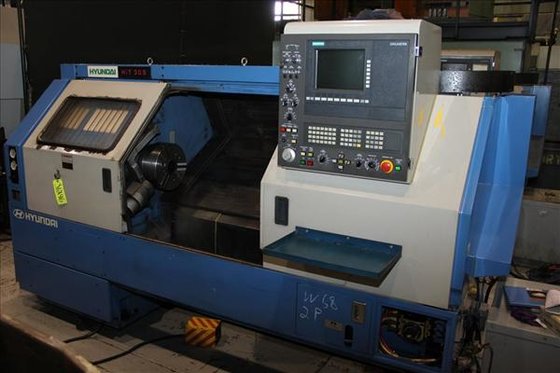

HIT 30S CNC LATHE
Distance between Centers:
39.4"
Spindle Nose:
A2-8

Specifications

Condition:
used
Year:
1997
Stock number:
31296
Spindle nose:
A2-8
Maximum swing:
20.1"
X-axis travel:
7.87"
Z-axis travel:
40.16"
Spindle speed(s):
30-3000 RPM
Number of turrets:
1
Rapid traverse (x):
945 IPM
Rapid traverse (z):
708 IPM
Hole-through spindle:
3.15"
Total tool positions:
8/8
Maximum cutting length:
39.37
Distance between centers:
39.4"

Description

Equipped With
Siemens Sinumerik 840C CNC Control
Tailstock
Dimensions and Weight
140"x 85"x 80"
3556mm x 2159mm x 2032mm
13000
5896 Kg
