Location:
Elk Grove Village, IL
Model:

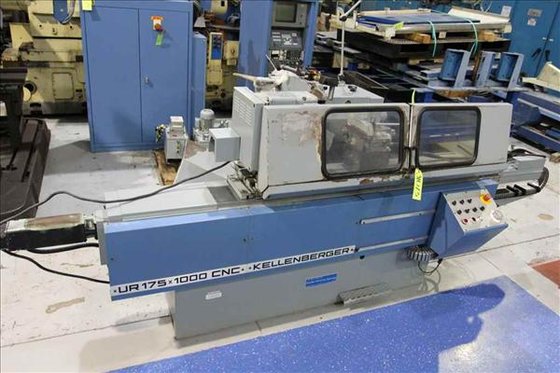

UR 175 X 1000 CNC CYLINDRICAL GRINDER

Specifications

Condition:
used
Year:
1989
Stock number:
31073
Table swivel:
Maximum swing:
13.74"
X-axis travel:
10.24"
Z-axis travel:
43.9"
Spindle speeds:
5-500 RPM
Tailstock taper:
#4MT
Workhead swivel:
-30° / +120°
Wheelhead swivel:
200°
Height of centers:
6.89"
Power requirements:
13.4HP
Workhead motor output:
3.2HP
Wheelhead motor output:
5.9HP
Internal spindle carrier:
3.15"
Internal taper of spindle:
#5MT
Max grinding wheel (left):
15.75" x2.48" x5.00"
Maximum grinding capacity:
13.74"
Max grinding wheel (right):
8.86" x0.79" x3.00"
Tailstock sleeve retraction:
1.18"
Maximum distance between centers:
39.37"

Description

Equipped With
Kelco 70 CNC Control System
Movomatic CR257 O.D. Measuring Device
Coolant System
Magnetic Separator
Dimensions and Weight
150"x 76"x 56"
3810mm x 1930mm x 1422mm
3600
1633 Kg
