Top Seller

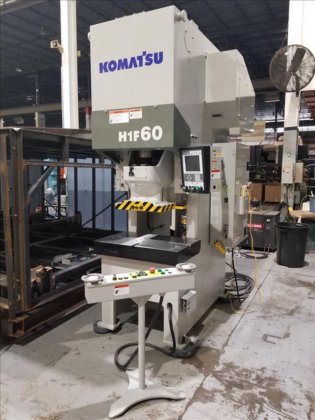

KOMATSU H1F 60CS NEW SERVO
Location:
United States
Manufacturer:
Komatsu presses
Model:
H1F 60CS NEW SERVO GAP FRAME PRESS
Capacity:
59.87 Metric Ton
Stroke:
119.89mm

Specifications

Condition:
used
Year:
2012
Motor:
7kw
Terms:
As Is, Where Is
Weight:
0 Kg
Capacity:
59.87 Metric Ton
Dimensions:
0mm x 0mm x 0mm
Slide area:
500.38mm L-R x 400.05mm F-B
Press speed:
85 SPM (max)
Bolster area:
899.16mm L-R x 551.18mm F-B
Slide stroke:
119.89mm
Slide adjustment:
65.02mm
Bolster thickness:
130.05mm
Shut height (sdau):
299.97mm
Shank hole diameter:
50.80mm

Description

SIT IV Control System
Plunger Guide System
Auto Die Height Adjustment
Linear Scale
Hydraulic Overload Protection
Precision, Oil-Lubricated 6-Point Gibbing
T-Stand Operation
Air Counterbalance System
