Top Seller

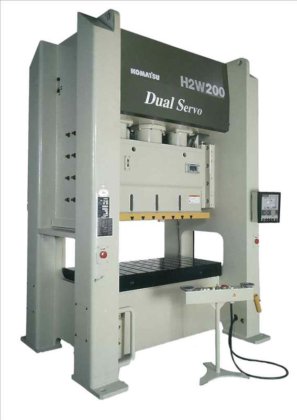

NEW KOMATSU H2W 200S DUAL
Location:
United States
Price:
No price
Manufacturer:
Komatsu presses
Model:
H2W 200S NEW DUAL SERVO STRAIGHT SIDE PRESS
Capacity:
220 Ton
Stroke:
9.8"

Specifications

Condition:
used
Year:
2013
Stock number:
32108
Windows:
33.9"
Capacity:
220 Ton
Main motor:
(2) 55 HP
Slide area:
72.8" x 43.0"
Max. stroke:
9.8"
Bolster area:
84.6" x 43.0"
Slide adjustment:
4.7"
Speed (pendulum):
70 SPM
Speed (rotation):
~50 SPM
Bolster thickness:
7"
Shut height (sdau):
19.7"
Max. upper die / tooling:
4410 Lbs
Subcategory:
Mechanical presses

Description

Equipped With
SIT IV Control
Two Independent Servo Drives
Linear Glass Scales
Auto Die Height Adjustment (Maintained to 0.0004")
Auto Die Height Adjustment (Maintained to 0.01mm )
Plunger Guide System
Hydraulic Overload Protection
Precision Oil-Lubricated 6-Point Gibbing
Pneumatic Counterbalance
T-Stand Operation
Large Tolerance for Off-Center Loading
Dimensions and Weight
0"x 0"x 0"
0mm x 0mm x 0mm
0
0 Kg
