Top Seller

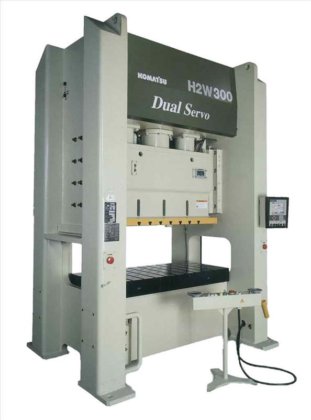

NEW KOMATSU H2W 300S DUAL
Location:
Newport News, VA
Manufacturer:
Komatsu presses
Model:
H2W 300S NEW DUAL SERVO STRAIGHT SIDE PRESS
Capacity:
330 Ton
Stroke:
11.8

Specifications

Condition:
used
Year:
2014
Stock number:
30899
Windows:
38.6"
Capacity:
330 Ton
Main motor:
(2) 80 HP
Slide area:
82.7" x 47.2"
Electricals:
460/3/60
Max. stroke:
11.8
Bolster area:
94.5" x 47.2"
Slide adjustment:
7.8"
Bolster thickness:
7.8"
Counterbalance (at 71 psi):
4410 Lbs
Shut height over bed (sdau):
31.4"
Speed (max in pendulum mode):
55 SPM
Speed (max in rotation mode):
40 SPM
Shut height over bolster(sdau):
23.6"
Subcategory:
Mechanical presses

Description

Equipped With
SIT IV Control
Komatsu Electronic Load Monitor LOM-SIT
Two Independent Servo Drives
Linear Glass Scales
Auto Die Height Adjustment (Maintained to 0.0004")
Auto Die Height Adjustment (Maintained to 0.01mm )
Plunger Guide System
Six Point Square Gibbing
Hydraulic Overload Protection
Precision Oil-Lubricated 6-Point Gibbing
Pneumatic Counterbalance
T-Stand Operation
Large Tolerance for Off-Center Loading
Dimensions and Weight
0"x 0"x 0"
0mm x 0mm x 0mm
0
0 Kg
