Top Seller

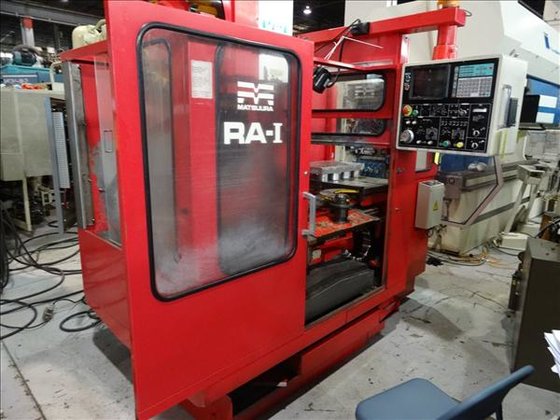

1987 MATSUURA RA-1 CNC VERTICAL
Location:
United States
Model:
RA-1 CNC VERTICAL MACHINING CENTER
Spindle Taper:
BT40

Specifications

Condition:
used
Year:
1987
Terms:
F.O.B.
Weight:
4535 Kg
Dimensions:
2794mm x 2540mm x 2794mm
Table size:
599.44mm x 378.46mm
Spindle speed:
6000 RPM
Spindle taper:
BT40
X-axis travel:
508.00mm
Y-axis travel:
398.78mm
Z-axis travel:
459.74mm
Max tool length:
299.72mm
Max tool weight:
5.99 kg
Max tool diameter:
80.01mm / 149.86mm
Table load capacity:
249.43 kg
Z-axis rapid traverse:
400.05 mm/sec
Spindle nose to table top:
149.86mm - 609.60mm
X / y-axis rapid traverses:
499.53 mm/sec

Description

Yasnac MX-3 CNC Control
20-ATC Automatic Tool Changer
