Location:
United States
Price:
No price
Model:

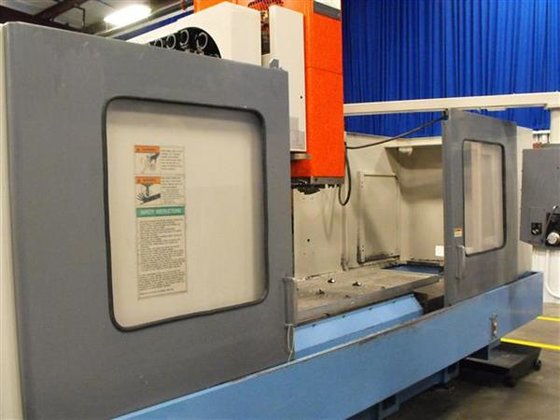

V-655B MAZATECH CNC VERTICAL MACHINING CENTER
Spindle Taper:
#50

Specifications

Condition:
used
Year:
1992
Stock number:
31044
Table size:
68.50" x 25.59"
Spindle taper:
#50
X-axis travel:
59.05"
Y-axis travel:
25.59"
Z-axis travel:
25.59"
Maximum tool length:
15.74"
Maximum tool weight:
44.1 Lbs
Table load capacity:
4400 Lbs
Maximum tool diameter:
4.92"
Z-axis rapid traverse:
708 IPM
Spindle speed (2-steps):
25 - 6000 RPM
Tool shank configuration:
CAT50
X & y-axis rapid traverse:
945 IPM
Distance from table top to spindle nose:
7.87" - 33.46"

Description

Equipped With
Mazatrol M-32B CNC Control
30-ATC Automatic Tool Changer
25 HP / 20 HP Spindle Motor
18.64 kw / 14.91 kw Spindle Motor
Chip Conveyor
Dimensions and Weight
0"x 0"x 0"
0mm x 0mm x 0mm
0
0 Kg
