Location:
Elk Grove Village, IL
Model:

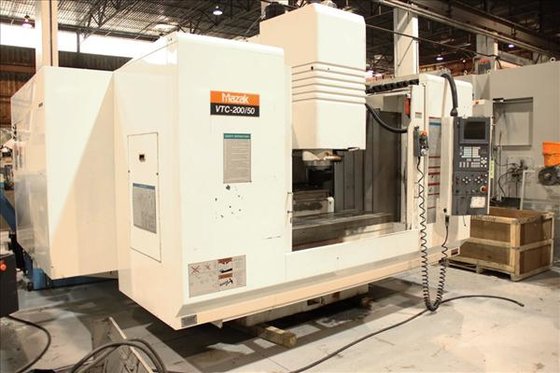

VTC-200/50 CNC VERTICAL MACHINING CENTER
Spindle Taper:
CAT50

Specifications

Condition:
used
Year:
2002
Stock number:
32574
Table size:
57" x 20"
Spindle drive:
25 HP
Spindle taper:
CAT50
X-axis travel:
41.3"
Y-axis travel:
20"
Z-axis travel:
23"
Spindle speeds:
50 - 6000 RPM
Rapid traverse rate:
1181 IPM
Table load capacity:
2,640 Lbs
Spindle face to table surface:
5.9" x 25.98"

Description

Equipped With
Mazatrol Fusion 640M CNC Control
Coolant Thru Spindle
24-ATC Automatic Tool Changer
Chip Conveyor
Dimensions and Weight
160"x 128"x 122"
4064mm x 3251mm x 3099mm
20800
9433 Kg
