Location:
United States
Price:
No price
Manufacturer:
Minster presses
Model:

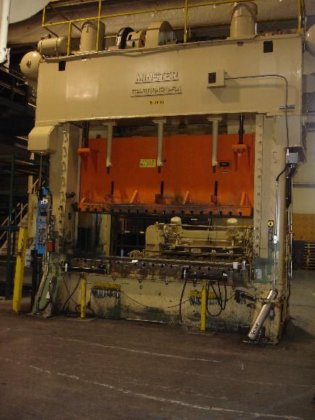

S2-300 -120-54 MECHANICAL STRAIGHT SIDE PRESS
Capacity:
300 Ton
Stroke:
14"

Specifications

Condition:
used
Year:
1975
Stock number:
24437
Stroke:
14"
Bed area:
120" L-R x 54" F-B
Capacity:
300 Ton
Slide area:
120" L-R x 54" F-B
Window opening:
22" W
Speed (variable):
14 - 28 SPM
Distance bed to floor:
32"
Powered slide adjustment:
14"
Shut height bed to slide (sdau):
29"
Subcategory:
Mechanical presses

Description

Equipped With
(4) Air Counterbalances to Slide
T-Slotted Bolster Plate
(3) Die Cushions (22J, 7" stroke)
(3) Die Cushions (22J, 177.80mm stroke)
Automatic Recirculating Lubrication System
Minster Air Clutch and Brake with Selector Controls
AC Main Vari-Speed Drive Motor
Tie Rod Construction
Arranged for (3) F-B Knockouts
Enclosed Gears Running in Oil
AC Adjustment Motor
Electrical Controls
Dual Palm Button Operation (Pedestal Mounted)
Dimensions and Weight
200"x 100"x 220"
5080mm x 2540mm x 5588mm
135000
61223 Kg
