Location:
United States
Price:
No price
Manufacturer:
Minster presses
Model:

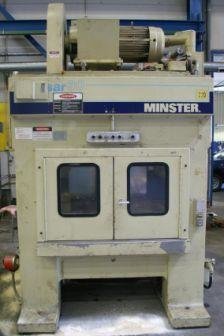

TR2-30 "PULSAR" HIGH-SPEED PRESS
Capacity:
30 Ton
Stroke:
1"

Specifications

Condition:
used
Year:
1984
Stock number:
27294
Stroke:
1"
Capacity:
30 Ton
Opening in bed:
26" x 4"
Slide face area:
34.5 L-R x 12" F-B
Speeds (variable):
100 - 1400 SPM
Bolster adjustment:
1.75" (Motorized)
Bolster dimensions:
30" L-R x 21" F-B
Shut height over bolster:
7.25" - 9"
Shut height over bed (adjustable):
11.37" - 13.12"
Subcategory:
High-speed presses

Description

Equipped With
T-Slotted Bolster Plate (4.1" Thick)
T-Slotted Bolster Plate 104.14mm Thick)
Automatic Recirculating Lubrication System
25 HP Eddy Current Main Drive Motor
18.64 kw Eddy Current Main Drive Motor
Electrical Controls
Operator Control Console (Seperate, Free-Standing)
Dual Push Button Operation
Dimensions and Weight
60"x 60"x 122"
1524mm x 1524mm x 3099mm
20000
9070 Kg
