Location:
United States
Price:
No price
Model:

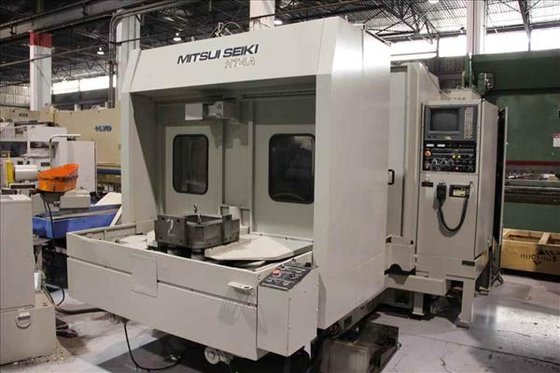

HT4A MITSUI SEIKI HORIZONTAL MACHINING CENTER
Spindle Taper:
BT 50 Big Plus

Specifications

Condition:
used
Year:
1997
Stock number:
29530
Spindle taper:
BT 50 Big Plus
Spindle speeds:
120 - 12,000 RPM
B-axis (rotary):
1° (360 positions)
Table dimensions:
19.69" x19.69"
Up/down (z axis):
21.65"
Number of pallets:
2 on machine, 1 spare
Max weight on table:
1760 lbs
Power on the spindle:
24.8HP
Vertical travel (y-axis):
23.62"
Table longitudinal travel (x-axis):
28.35"

Description

Equipped With
Fanuc 15M (B)
60 Position Tool Changer
Linear Guide System
Scales
Spindle Chiller and Coolant System
Conveyor Suitable for Cast Iron
Approx. 60 Tool Holders
Dimensions and Weight
190"x 118"x 120"
4826mm x 2997mm x 3048mm
29000
13152 Kg
