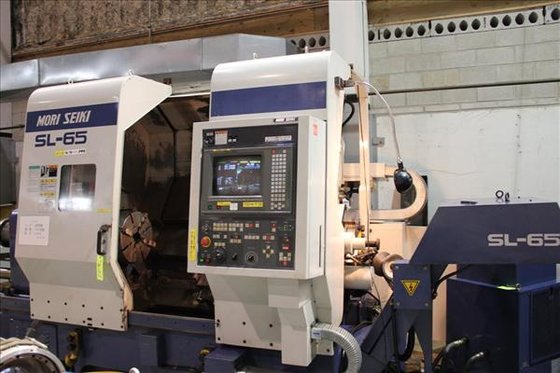

MORI SEIKI SL65A CNC LATHE in United States

Location:
United States
Price:
No price
Manufacturer:
Mori seiki lathes
Model:
SL65A CNC LATHE
Distance between Centers:
35.4"
Spindle Nose:
A1-11

Specifications

Condition:
used
Year:
1996
Stock number:
31687
Spindle nose:
A1-11
X-axis travel:
17.1"
Z-axis travel:
33.9"
Spindle speeds:
93 - 280 RPM (1st Range)
Tailstock travel:
26.8"
Bar work capacity:
3.5"
Rapid traverse (x):
196.9 IPM
Rapid traverse (z):
315 IPM
Max turning diameter:
32.3"
Through spindle hole:
4.1"
Turret indexing time:
1.5 sec / 1 Station
Maximum swing over bed:
35.0"
Tailstock quill travel:
3.9"
Number of tool stations:
12
Distance between centers:
35.4"
Tailstock spindle diameter:
4.3"
Maximum swing over cross slide:
22.0"
Spindle bearing inner diameter:
6.7"
Taper hole of tailstock spindle:
MT4

Description

Equipped With
Moric T6F (Fanuc 16T) CNC Control
(1) 16" 4-Jaw Independent Manual Chuck
(1) 406.40mm 4-Jaw Independent Manual Chuck
(1) 12" 3-Jaw Hydraulic Chuck (Solid, no Thru Hole)
(1) 304.80mm 3-Jaw Hydraulic Chuck (Solid, no Thru Hole)
50 HP / 40 HP Main Drive
37.29 kw / 29.83 kw Main Drive
Chip Conveyor
Assorted Tooling
Dimensions and Weight
Call Perfection Global for Dimensions
20000
9070 Kg
