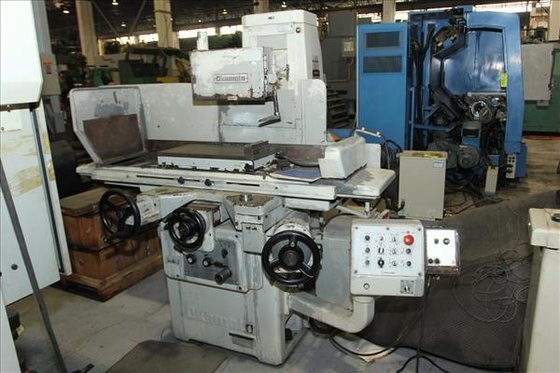

1990 OKAMOTO 124N ACCUGAR SURFACE
Location:
United States
Model:
124N ACCUGAR SURFACE GRINDER
Weight:
2268 Kg

Specifications

Condition:
used
Year:
1990
Terms:
As Is
Weight:
2268 Kg
Pad size:
762.00mm x 299.72mm
Dimensions:
2286mm x 1778mm x 1930mm
Table travel:
749.30mm (Longitudinal)
Spindle speed:
1800 RPM
Table travel 2:
345.44mm (Cross)
Grinding wheel size:
304.80mm O.D. x 38.10mm Width x 127.00mm I.D.
Vertical rapid feed:
8.04 mm/sec
Table cross movement:
0.51mm - 20.32mm (Hyd. Intermited)
Magnetic chuck surface:
304.80mm x 609.60mm
Table cross movement 2:
1.69 mm/sec -16.93 mm/sec (Hyd. Continuous)
Table cross movement 3:
6.35mm (Hand, per Revolution)
Table cross movement 4:
0.05mm (Graduation of Handweel)
Spindle vertical movement:
0.03mm - 0.38mm (Auto Feed per Table Stroke)
Spindle vertical movement 2:
1.27mm (Hand Feed per Revolution)
Spindle vertical movement 3:
0.01mm (Graduation of Handwheel)
Table longitudinal feed per revolution:
5.08 mm/sec - 508.00 mm/sec (Hydraulic)
Table longitudinal feed per revolution 2:
46.99mm (Hand)
Distance under 304.80mm grinding wheel to table top:
347.98mm

Description

304.80mm X 609.60mm Walker Electromagnetic Chuck
Incremental Down Feed
Hydraulic Longitudinal & Cross Feed
Power Rapid Wheelhead Elevation
Cross Feed Control; Table Speed Control
Step Feed Control; Coolant System
3.73 kw AC Main Drive Spindle Motor
1.49 kw AC Hydraulic Power Unit Motor
Electrical Controls
