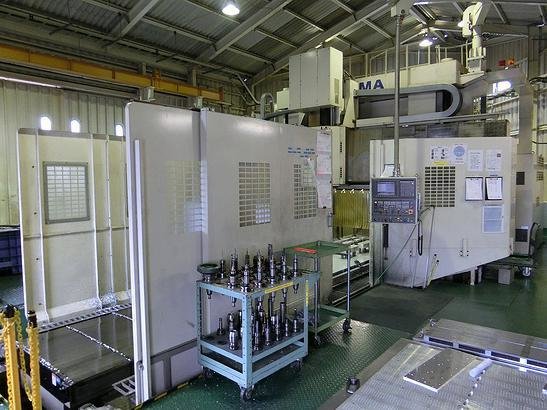

2003 OKUMA MCR-BII 20 X
Location:
United States
Model:
MCR-BII 20 X 40 5-AXIS DOUBLE COLUMN MACHINING CENTER
Spindle Taper:
BT50 & HSK-63

Specifications

Condition:
used
Year:
2003
Terms:
FOB Long Beach Port
Weight:
0 Kg
Dimensions:
0mm x 0mm x 0mm
Table size:
1500.12mm x 3799.84mm
A-rotary axis:
+/- 100°
C-rotary axis:
+/- 360°
Spindle drive:
22.37 kw / 29.83 kw
Spindle speed:
10 RPM - 8000 RPM
Spindle taper:
BT50 & HSK-63
W-axis travel:
698.50mm
X-axis travel:
4000.50mm
Y-axis travel:
2692.40mm
Z-axis travel:
800.10mm
Feed rate (x/y/z):
169.33 mm/sec
Rapid traverse (z):
166.79 mm/sec
Rapid traverse (x/y):
250.19 mm/sec
Width between columns:
2049.78mm
Table loading capacity:
15963.20 kg
Distance spindle nose to table:
149.86mm - 1649.98mm

Description

Okuma OSP E100M CNC Control
50-ATC Automatic Tool Changer
(31) HSK Tool Holders
(4) Station AAC
(3) Head Attachments
-- Universal 5-Axis (+/- 100° A, +/- 360° C, 20,000 RPM)
-- 90° Right Angle Head (30-3,000 RPM)
-- Standard Head Attachment (10-8,000 RPM)
Coolant System
Full Machine Guarding
