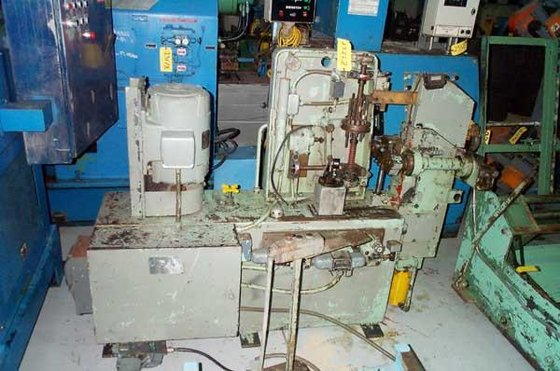

PINES 3T VERTICAL TUBE BENDER
Location:
United States
Manufacturer:
Pines
Model:
3T VERTICAL TUBE BENDER
Capacity:
2.72 Metric Ton
Weight:
1361 Kg

Specifications

Condition:
used
Terms:
F.O.B.
Weight:
1361 Kg
Capacity:
2.72 Metric Ton
Dimensions:
2159mm x 686mm x 1524mm
Production rate:
up to 1500 Bends/Hour
Bending capacity:
25.40mm O.D. x 1.65mm Wall (Steel Tubing)
Maximum bend angle:
140 Degrees - w/Normal Tooling
Operating pressure:
140.60 kgs./
88.90mm maximum c.l.r:
yes
Centerline radius range:
(Permitting Bending to Maximum Angle)
Height from floor to dies:
1016.00mm
Variable ram speed control:
yes
165 degrees - w/special tooling:
yes
50.80mm to 76.20mm minimum work diameter:
yes
Heavy cast steel c-frame type construction:
yes
Welded steel bed with integral 189 liters oil reservoir in base:
yes

Description

Automatic (10) Station Angle of Bend Selector
Bijur Automatic Lubricating System
5.59 kw AC Main (Pump) Motor:
Electrical Controls
Pedestal Mounted Push Button Operation
