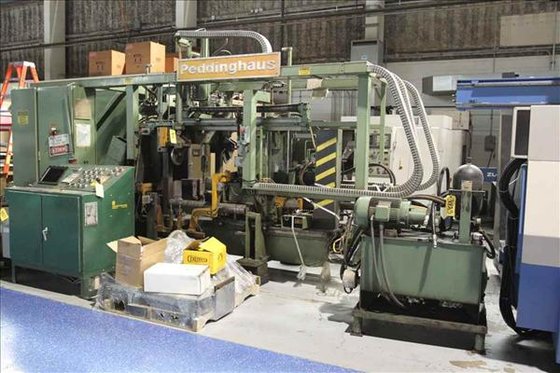

1996 PEDDINGHAUS TDK 1000/3G BEAM

1996 PEDDINGHAUS TDK 1000/3G BEAM DRILL LINE in United States

Location:
United States
Manufacturer:
Peddinghaus
Model:
TDK 1000/3G BEAM DRILL LINE

Specifications

Condition:
used
Year:
1996
Terms:
F.O.B.
Angles:
yes
Weight:
9070 Kg
Maximum:
914.40mm x 7620.00mm , 355.60mm x 18542.00mm
Minimum:
101.60mm x 330.20mm
Maximum 2:
355.60mm x 457.20mm
Maximum 3:
609.60mm x 3073.40mm
Maximum 4:
381.00mm x 1270.00mm
Maximum 5:
457.20mm x 1473.20mm
Maximum 6:
203.20mm x 203.20mm x 28.58mm
Minimum 2:
76.20mm x 144.78mm
Minimum 3:
76.20mm x 104.14mm
Minimum 4:
152.40mm x 304.80mm
Minimum 5:
88.90mm x 88.90mm x 6.35mm
Dimensions:
5588mm x 2007mm x 2946mm
Maximum 10:
457.20mm x 1473.20mm
Maximum 11:
203.20mm x 203.20mm x 28.58mm
Drill speeds:
270 / 540 RPM
Flange shapes:
yes
Maximum beam width:
990.60mm
Number of spindles:
3
Hole diameter (web):
39.69mm
Max workpiece weight:
19863.30 kg (Requires optional guide block)
Maximum flange height:
609.60mm
Miscellanous channels:
yes
Hole diameter (flange):
39.69mm
American standard beams:
yes
American standard channels:
yes
Number of spindles per axis:
1
Structural shape capacities:
yes
Miscellanous beam and columns:
yes
Traversing speed (y-axis) web drill:
335.28 mm/sec
Rate of drill feet (infinitely variable):
1-5.08 mm/sec
Traversing speed (w & z) flange drill assemblies:
335.28 mm/sec
Workpiece traversing speed (longitudinal x-axis):
39.62 m/min

Description

Controlled Automation Retrofit in 2006
DOS Based Control
