Location:
United States
Price:
No price
Manufacturer:
Rowe
Model:

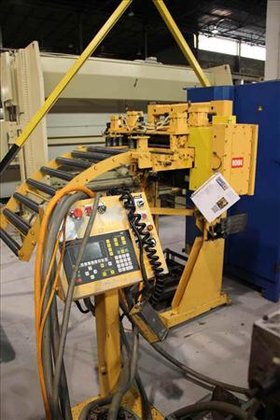

COMBINATION SERVO FEED AND STRAIGHTENER
Capacity:
30" x .065" (Maximum)

Specifications

Condition:
used
Year:
1995
Stock number:
31656
Capacity:
30" x .065" (Maximum)
Total roll length:
31-1/2"
Speed (programmable):
0 - 300 FPM
Programmable feed length:
999.999"
Category:
Machine Tools equipment in United States

Description

Equipped With
Indramat SOT Programmable Control
Cascading Entry Rolls
Adjustable Guide Rolls
Pneumatic Lifting and Closing of Rolls
Adjustable Feed Line Height (5")
Adjustable Feed Line Height ( 127.00mm )
Press Mounting Brackets
Remote "Jog" Push Buttons
Remote Jog Push Buttons
Electrical Controls (Free-Standing Cabinet)
Operator Station (Pedestal Mounted)
ROWE B-30 STRAIGHTENER:
Capacity:
(7) Hardened Straightener Rolls:
(2) Sets of Power Driven Pinch Rolls:
Inclined Straightener Head:
Pneumatic Coil Peeler w/Extension
Adjustable Stock Entry & Exit Guides
Power Driven Lower Straightener Rolls
Pneumatic Lift to Pinch Rolls
Cascading Support Rolls
Electromagnetic Clutch & Brake w/Rheostat Control
Adjustable Upper Straightener Rolls
3 HP AC Main Drive Motor
2.24 kw AC Main Drive Motor
Feed Rate (Variable)
Electrical Controls
Remote Inching Button
Dimensions and Weight
65"x 50"x 72"
1651mm x 1270mm x 1829mm
2000
907 Kg
