Location:
United States
Price:
No price
Manufacturer:
Schiess lathes
Model:

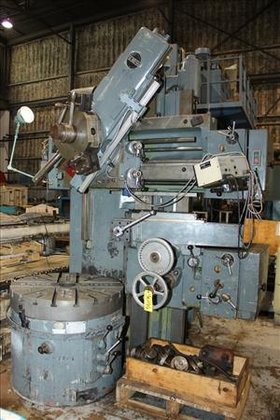

13 EK 105 VERTICAL TURNING LATHE

Specifications

Condition:
used
Year:
1961
Stock number:
30144
Maximum swing:
49.2"
Table diameter:
39.4"
Vertical travel:
27.6"
Crossrail travel:
27.6"
Turret swivelling:
35°
Maximum table speed:
155 RPM
Maximum working height:
43.3"
Maximum weight on table:
6,600 Lbs

Description

Equipped With
Mitutuyo Digital Read-out Display
40 HP Main Motor
29.83 kw Main Motor
Dimensions and Weight
102"x 96"x 132"
2591mm x 2438mm x 3353mm
30000
13605 Kg
