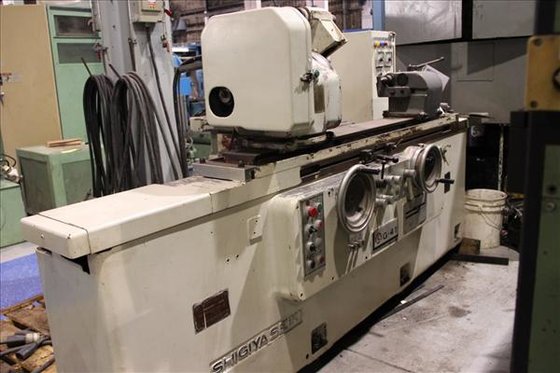

SHIGIYA SEIKI GUA-41-100 UNIVERSAL OD/ID CYLINDRICAL GRINDER in United States

Location:
United States
Price:
No price
Model:
GUA-41 SEIKI -100 ID/OD CYLINDRICAL GRINDER

Specifications

Condition:
used
Year:
1983
Stock number:
26432
Fine feed:
.0001"
Wheel speed:
1700/1900 RPM
Center taper:
4 MT
Quill stroke:
~1.1"
Rapid advance:
1.5 IPM
Coolant system:
20 Gal
Center distance:
38"
Swing over table:
16.5"
Wheelslide swivel:
30 Degrees
Manual feed travel:
8.5"
Max spark-out time:
30 Sec.
Max spark-out stroke:
30
Max grinding diameter:
14"
Wheel spindle lubricate:
3 Gal
Max id grinding diameter:
3.25"
Spindle rotation, swivel:
120 Degrees
Handle feed one revolution:
.04"
Max automatic infeed stroke:
~.03"
Standard grinding wheel dia:
14" x 1.25" x 5"
Hydraulic and lubricating oil:
14 Gal
Spindle speeds (9 by belt change):
13 - 252 RPM
Automatic continuous infeed speed up to:
.1 IPM

Description

Equipped With
Drop Down Internal Spindle:
Plunge Feed & Sparkout:
Live & Dead Workhead:
Tailstock; 6" Permament Magnetic Chuck:
Tailstock; 152.40mm Permament Magnetic Chuck:
Dust CollectorL:
Fine Feed:
Dimensions and Weight
126"x 64"x 64"
3200mm x 1626mm x 1626mm
7500
3401 Kg
