Location:
Värnamo, Sweden
Manufacturer:
STENHOJ
Model:

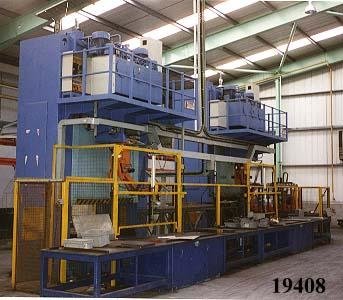

200 TPC HYDRAULIC STRAIGHT SIDE PRESS
Stroke:
15.76" (Maximum)

Specifications

Condition:
used
Year:
1989
Stock number:
19408
Speed:
816 IPM - Approach
Stroke:
15.76" (Maximum)
Bed area:
82.74" L-R x 47.28" F-B
Daylight:
39.4"
Closed height:
23.64"
Slide face area:
82.74" L-R x 47.28" F-B (T-Slotted)
Window openings:
15" W (Approx)
Maximum return force:
20 Ton
Maximum pressing force:
225 Ton
Minimum pressing force:
28 Ton
Subcategory:
Hydraulic presses

Description

Equipped With
Logodan CNC Control with CRT Screen
Hydraulic Ejector Cylinders in Ram (11 Ton; 5.9" Stroke)
Hydraulic Ejector Cylinders in Ram ( 9.98 Metric Ton; 149.86mm Stroke)
Hydraulic Die Clamping
T-Slotted Bolster Plate
(2) AC Main (Pump) Drive Motors
Electrical Controls
Operator Control Console
Dimensions and Weight
126"x 65"x 216"
3200mm x 1651mm x 5486mm
55125
24999 Kg
