Location:
United States
Price:
No price
Manufacturer:
STENHOJ
Model:

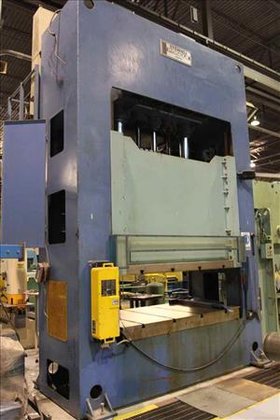

200 TPC 200TPC HYDRAULIC STRAIGHT SIDE PRESS
Stroke:
15.76" (Maximum)

Specifications

Condition:
used
Year:
1989
Stock number:
19410
Speed:
816 IPM - Approach
Stroke:
15.76" (Maximum)
Bed area:
82.74" L-R x 47.28" F-B
Daylight:
39.4"
Closed height:
23.64"
Slide face area:
82.74" L-R x 47.28" F-B (T-Slotted)
Window openings:
19-3/4" W x 23-1/4" H
Maximum return force:
20 Ton
Distance bed to floor:
29-1/2"
Maximum pressing force:
225 Ton
Minimum pressing force:
28 Ton
Subcategory:
Hydraulic presses

Description

Equipped With
**New Allen Bradley Control Available for Additional Cost. Call for details.**
Hydraulic Ejector Cylinders in Ram (11 Ton; 5.9" Stroke)
Hydraulic Ejector Cylinders in Ram ( 9.98 Metric Ton; 149.86mm Stroke)
Hydraulic Die Clamping
T-Slotted Bolster Plate (6-1/2" Thick)
T-Slotted Bolster Plate ( 165.10mm Thick)
Welded Steel Frame Construction
8-Point Gibbing
(2) 22 kW AC Main (Pump) Drive Motors
(3) 2.2 kW AC Auxiliary (Pump) Motors
Electrical Controls
Operator Control Console (Pendant Mounted)
Top Mounted Hydraulic Power Unit
Flush Floor Design
Dimensions and Weight
126"x 65"x 216"
3200mm x 1651mm x 5486mm
50000
22675 Kg
