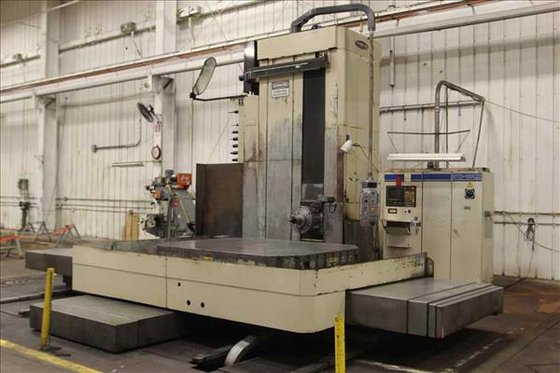

1995 TOSHIBA BTD-13R22 4-AXIS CNC
Location:
United States
Manufacturer:
Toshiba boring mills
Model:
BTD-13R22 4-AXIS CNC HORIZONTAL BORING MILL
Spindle Diameter:
130 mm

Specifications

Condition:
used
Year:
1995
Feeds:
65.19 mm/sec
Terms:
F.O.B.
Weight:
63490 Kg
Dimensions:
7620mm x 2540mm x 3810mm
Table size:
1800 mm x 2200 mm
Repeatability:
+/- 0.003mm (XYZ), +/- 0.008mm (W)
Spindle motor:
22.37 kw
Spindle speed:
2,500 RPM
Spindle taper:
#50
Rapid traverse:
166.67 mm/sec
Table capacity:
10,000 kg
Table rotation:
1° Increments
Spindle diameter:
130 mm
Maximum tool length:
398.78mm
Maximum tool weight:
19.95 kg
Required air supply:
72 PSI - 116 PSI
Positioning accuracy:
+/- 0.005mm (XYZ), +/- 0.010mm (W)
Z-axis travel (saddle):
1600 mm
W-axis travel (spindle):
700 mm
X-axis travel (table cross travel):
3000 mm
Maximum tool diameter (full magazine):
127.00mm
Maximum tool diameter (adjacent pots empty):
241.30mm
Y-axis travel (vertical travel of headstock):
2300 mm

Description

Tosnuc 777-2 4-Axis CNC Control
60-ATC Automatic Tool Changer
Built-In 1° B-Axis
ThroughTool Coolant
Chip Conveyor
