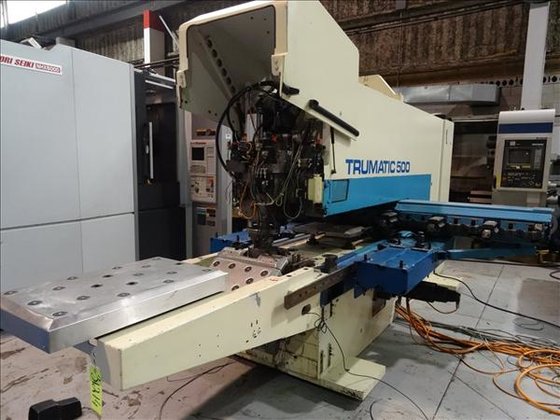

1996 TRUMPF TC500 TRUMATIC CNC
Location:
United States
Manufacturer:
Trumpf presses
Model:
TRUMPF TRUMATIC TC500 CNC TURRET PUNCH
Capacity:
22.68 Metric Ton

Specifications

Condition:
used
Year:
1996
Terms:
F.O.B.
Weight:
9977 Kg
Ce mark:
yes
Capacity:
22.68 Metric Ton
Dimensions:
5080mm x 2997mm x 2337mm
Maximum hit rate:
223.71 kwM ( 25.40mm Moves)
Maximum hit rate 2:
447.42 kwM (Contours)
Maximum sheet size:
1320.80mm x 2540.00mm
Maximum punch diameter:
76.20mm
Maximum sheet thickness:
7.94mm (Mild Steel)
Maximum workpiece weight:
149.66 kg
Maximum positioning speed:
109.22 m/min

Description

Bosch Trumagragh CNC Control with CRT and Graphics
(20) Station Linear Automatic Tool Changer (on X-Axis Rail)
Tool Rotation
Hydraulically Driven Ram with Programmable Stroke Control
AC Main Drive Motor; Electrical Controls
Separate, Free-Standing Control Unit
