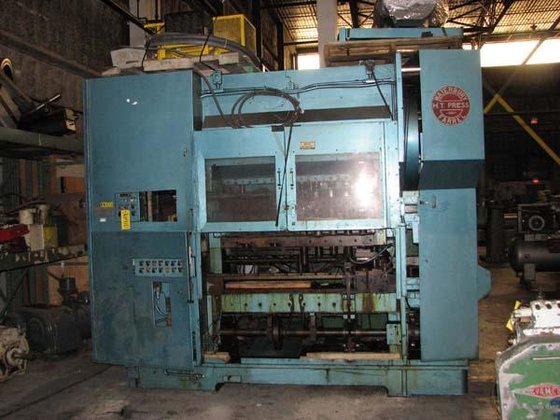

WATERBURY 20-10HT FARREL ICOP TRANSFER
Location:
United States
Manufacturer:
Farrel presses
Model:
20-10HT FARREL ICOP TRANSFER PRESS
Capacity:
8.16 Metric Tons

Specifications

Condition:
used
Terms:
F.O.B.
Weight:
10884 Kg
Dimensions:
3353mm x 1524mm x 2743mm
Shut height:
152.40mm
Cast iron frame:
yes
Air clutch & brake:
yes
Tool center distance:
127.00mm
Max. depth of drawn shell:
79.38mm
Maximum diameter of blank:
120.65mm (Single Row Blanking)
Number of plunger stations:
10
85.73mm (two rows blanking):
yes
33.34mm (three rows blanking):
yes
Rated capacity of ea. station:
8.16 Metric Tons
Pieces per minute (using standard cam):
35 - 70
Ceiling height necessary to remove lifter rods:
3911.60mm
Subcategory:
Transfer presses

Description

Rear Mounted Roll Feed
Scrap Chopper
Blanking Station
Automatic Lube System
29.83 kw AC Main Drive Motor
Baldor Frequency Drive
Electrical Control System
