Location:
Elk Grove Village, IL
Manufacturer:
WERAG
Model:

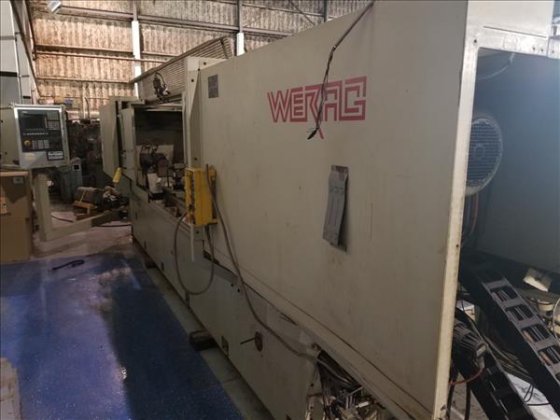

EM122QS CNC FACING & CENTERING MACHINE

Specifications

Condition:
used
Year:
1998
Stock number:
27084
Feed rate:
0 - 295 IPM
X-axis travel:
-3.9"
Z-axis travel:
63"
Rapid traverse:
394 IPM
Spindle speeds:
1500 RPM
Spindle diameter:
3.2"
Workpiece length:
81.1" - 95.6"
Workpiece diameter:
4.1" - 5.9"
Clamping units range:
.40" - 2.75"
Number of spindles on left unit:
2
Number of spindles on right unit:
2

Description

Equipped With
Siemens 840C CNC Control
Rexroth Hydraulic System
Centralized Lube System
Coolant System
15 HP AC Main Drive Spindle Motors
11.19 kw AC Main Drive Spindle Motors
Electrical Controls
Dimensions and Weight
288"x 80"x 87"
7315mm x 2032mm x 2210mm
24000
10884 Kg
