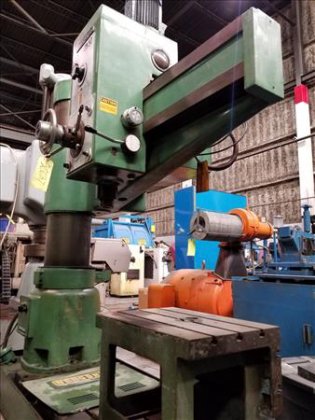

1984 WILLIS TM50 BERGONZI RADIAL
Location:
United States
Manufacturer:
WILLIS
Model:
TM50 BERGONZI RADIAL DRILL
Weight:
3175 Kg

Specifications

Condition:
used
Year:
1984
Feeds:
0.10mm to 0.56mm (5 Changes)
Terms:
F.O.B.
Weight:
3175 Kg
Dimensions:
2591mm x 1016mm x 2921mm
Column diameter:
304.80mm
(12) spindle speeds:
35-1620 RPM
Minimum spindle radius:
330.20mm
Morse taper in spindle:
No. 5
Maximum spindle to base:
1371.60mm
Minimum spindle to base:
457.20mm
Traverse of head on arm:
939.80mm
Traverse of arm on column:
762.00mm
Vertical travel of spindle in head:
299.72mm
Face of column to center of spindle:
1270.00mm Maximum
Spindle diameter (driving diameter):
86.36mm
Working surface of base: width - 914.40mm; length - 1371.60mm; height - 203.20mm:
1320.80mm x 762.00mm
Subcategory:
Radial drills

Description

4.85 kw AC Main Drive Motor
Coolant Pump
Electrical Controls
