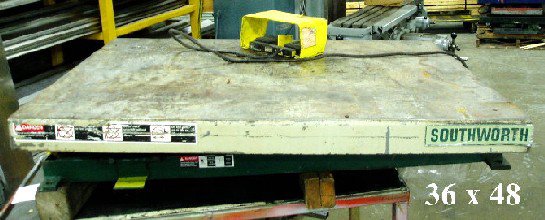

4000 Lb., SOUTHWORTH, LS4 36,
Location:
Memphis, TN
Manufacturer:
N/A

Specifications

Condition:
used
Stock number:
1247
Motor:
1/2 HP
Voltage:
110/1/60
Division:
Material Handling
Table size:
36" X 48"
Raised height:
42-3/4"
Lowered height:
6-3/4"
Lifting capacity:
4,000 lbs.
Approx. machine weight:
560 lbs.
Approx. overall dimensions:
36"L-R X 48"F-B X 7"H
Subcategory:
Lifters

Description

Model LS4 36 S/N 84301 B1
SPECIFICATIONS:
Lifting Capacity.................... 4,000 lbs.
Table Size.......................... 36" X 48"
Lowered Height...................... 6-3/4"
Raised Height....................... 42-3/4"
Motor............................... 1/2 HP
Voltage............................. 110/1/60
Approx. Overall Dimensions.......... 36"L-R X 48"F-B X 7"H
Approx. Machine Weight.............. 560 lbs.
EQUIPPED WITH:
Foot Control(Up/Down Operation)
Scissor Lift Design
2) Hydraulic Cylinders
