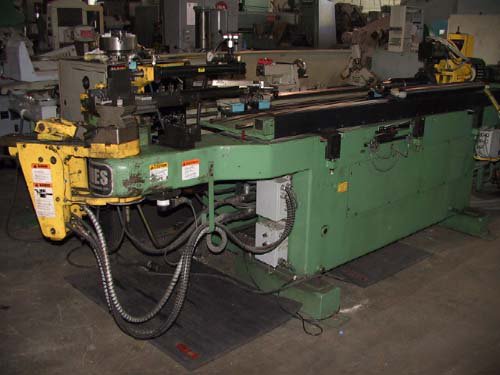

1.5" Pines, #MNC040, Adaptive Motion
Location:
Hialeah, FL

Specifications

Condition:
used
Stock number:
5446
Division:
Metalworking

Description

Year of manufacture 1952
Year rebuilt by Pines 1998
Series number 138-00
SPECIFICATIONS:
Maximum outside tube diameter 1-1/2"
Maximum wall thickness
a) Steel tubing (40,000 psi) .109"
b) Stainless steel (60,000 psi) .065"
c) Non-ferrous tubing (25,000 psi) .188"
d) Steel pipe, schedule 80 1.315" OD x .179"
e) Steel bar, round (40,000 psi) 1-1/8" diameter
f) Steel bar, square (40,000 psi) 3/4"
Bending centerline radius (max) 10"
Bending angle, max after tube spingback 180 degrees
Standard tube length over mandrel rod 120"
Standard carriage travel 72"
Motor power 7.5 HP
REPEATABILITY:
Bend arm rotation (C motion) +/- .10 degrees
Carriage feed (Y motion) +/-.01"
Collet rotation (B motion) +/-.10 degrees
Collet rotation 360 degrees
OPERATING SPEEDS:
Bend arm rotation (C motion) 17 rpm
Carriage feed (Y motion) 1200 IPM
Collet rotation (B motion) 30 RPM
FEATURES:
Compression & draw bending capability, Swing away wiper die
Simultaneous motion of Y and B axes, Drop away clamp
Open collet bending, Adaptive Motion Controller
This machine was totally refurbished by Pines in 1998.
