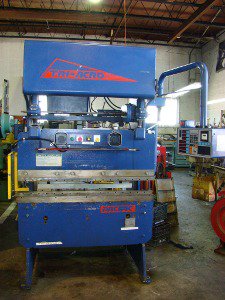

35 Ton, PACIFIC TRI-ACRO, #35-4,
Location:
Hialeah, FL
Manufacturer:
N/A

Specifications

Condition:
used
Stock number:
6361
Division:
Metalworking
Subcategory:
Brakes & folding

Description

Model number 35-4
Year of manufacture 1990
SPECIFICATIONS:
Capacity 35 tons
Length of bed and ram, overall 54"
Distance between housing, actual 46"
Bending capacity 54" x 14 ga.
Ram stroke 2"
Ram screw adjustment 3"
Ram open height 9"
Depth of throat 9"
Motor 3 HP
Electrics 230/460/3/60
Weight, approx. 4,500 lbs.
Dimensions (L x W x H) 68" x 52" x 96"
EQUIPPED WITH:
CNC Gauging Systems 2 axis CNC backgauge, Lower die holder
Foot control and dual palm buttons, Ram return button
Mode selector for set up, inch and auto return operations
Single selector for SLOW/HI/SLOW and HI/STOP/SLOW provides fast
approach and slow down or stop at any present point to prevent
sheet whip-up.
Ram position counters, Centralized one shot lubrication system
CNC GAUGING SYSTEMS CONTROL SPECS:
Gage travel 25"
Guage bar length 42"
Vertical travel 8-3/4"
Horizontal adjustment 7"
Accuracy +/- 0.002"
Position repeatability +/- 0.001"
Bending angle accuracy +/- 1/2 of 1 degrees
Gauge speed 800 IPM
