400 Ton, Cincinnati 400-H, 1967,
Location:
Longview, TX

Specifications

Condition:
used
Stock number:
2257
Note:
STANDING IN FRONT OF THE MACHINE, THE VERTICAL FRAME ON THE RIGHT
Division:
Metalworking
Subcategory:
Brakes & folding

Description

Date of Manufacture - 1967
Bending Capacity - low carbon steel, 1/2” thick x 10’ long (4” die)
Tonnage in fast approach – 160
Standard Stroke – 12”
Open Height – 20”
Closed Height – 8”
Fast Press Speed – 64 inches/minute
Full Tonnage Press Speed – 27 inches/minute
Return Speed – 51 inches/minute
Housing Plates – 4”
Bed Plates – 4”
Ram Plates – 4”
Bed Plates – 4”
40 HP, 440/3/60
Electrical Controls - 110/1/60
Cincinnati manual, installation instructions and foundation drawing

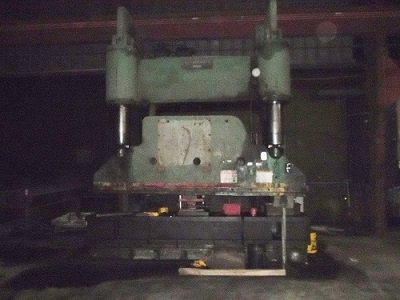

NOTE: STANDING IN FRONT OF THE MACHINE, THE VERTICAL FRAME ON THE RIGHT
SIDE HAS A CUT OUT FOR BENDING LONGER PARTS THAN THE SPACE BETWEEN THE HOUSINGS, SEE PHOTO BELOW.
