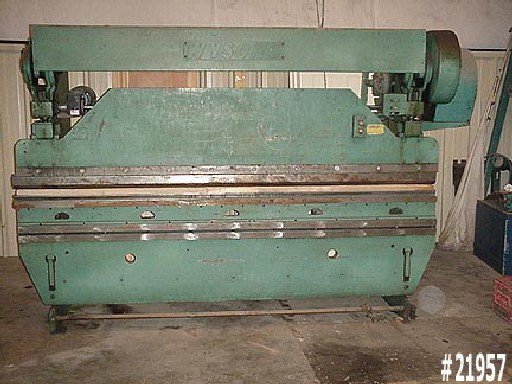

14 Ga. x 120", WYSONG,
Location:
Memphis, TN
Manufacturer:
Wysong
Capacity:
12' X 16 Gauge
Weight:
11,500 lbs.

Specifications

Condition:
used
Stock number:
1349
Division:
Metalworking
Main motor:
3 HP
(mild steel):
10' X 14 Gauge
Throat depth:
8"
(near bottom):
55 Ton
Approx. speed:
40 SPM
Shut height(sdau):
12"
Floor to top of bed:
34"
Ram adjustment motor:
1/4 HP
Approx. machine weight:
11,500 lbs.
Ram adjustment(powered):
3"
Approx. overall dimemmsions:
167"L-R X 67"F-B X 108"H
Overall length of bed & ram:
12'
Bending capacity(mild steel):
12' X 16 Gauge
Tonnage capacity(mid stroke):
35 Ton
Subcategory:
Brakes & folding

Description

55-B S/N PB4-116
SPECIFICATIONS:
Bending Capacity(Mild Steel).......... 12' X 16 Gauge
(Mild Steel).......... 10' X 14 Gauge
Tonnage Capacity(Mid Stroke).......... 35 Ton
(Near Bottom)......... 55 Ton
Overall Length of Bed & Ram........... 12'
Ram Adjustment(Powered)............... 3"
Shut Height(SDAU)..................... 12"
Throat Depth.......................... 8"
Floor to Top of Bed................... 34"
Approx. Speed......................... 40 SPM
Ram Adjustment Motor.................. 1/4 HP
Main Motor............................ 3 HP
Approx. Machine Weight................ 11,500 lbs.
Approx. Overall Dimemmsions........... 167"L-R X 67"F-B X 108"H
EQUIPPED WITH:
Foot Treadle Operation
Die Rail
Power Ram Adjustment W/Control & Position Indicator
Pushbuttons for Start/Stop
Automatic Oil Lubrication
Sectional Ram Die Clamps
