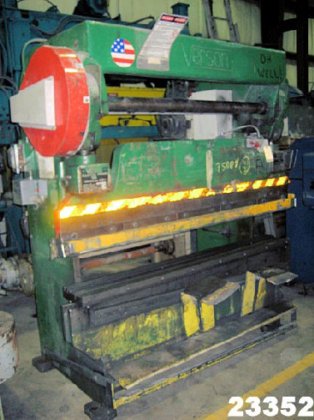

45 Ton, VERSON 2062, 78"
Location:
Memphis, TN
Manufacturer:
N/A
Capacity:
45 Tons
Weight:
7,500 lbs.

Specifications

Condition:
used
Stock number:
1385
Motor:
3 HP
Stroke:
2-1/2"
Voltage:
230/460/3/60
Division:
Metalworking
Throat depth:
8"
Width of bed:
4-1/4"
Approx. speed:
40 SPM
Ram adjustment:
3"
Tonnage capacity:
45 Tons
Shut height(sdau):
12"
Floor to top of bed:
28"
Ram adjustment motor:
1/2 HP
Approx. machine weight:
7,500 lbs.
Distance between housings:
62"
Approx. overall dimensions:
97"L-R X 66"F-B X 86"H
Bending capacity(mild steel):
78" X 12 Gauge
Overall length of bed and ram:
78"
Subcategory:
Brakes & folding

Description

Model 2062 S/N 8294
SPECIFICATIONS:
Bending Capacity(Mild Steel)......... 78" X 12 Gauge
66" X 10 Gauge
Tonnage Capacity..................... 45 Tons
Overall Length of Bed and Ram........ 78"
Distance Between Housings............ 62"
Stroke............................... 2-1/2"
Ram Adjustment....................... 3"
Shut Height(SDAU).................... 12"
Throat Depth......................... 8"
Width of Bed......................... 4-1/4"
Floor to Top of Bed.................. 28"
Approx. Speed........................ 40 SPM
Motor................................ 3 HP
Ram Adjustment Motor................. 1/2 HP
Voltage.............................. 230/460/3/60
Approx. Machine Weight............... 7,500 lbs.
Approx. Overall Dimensions........... 97"L-R X 66"F-B X 86"H
EQUIPPED WITH:
Full Length Foot Treadle
Bed & Ram Machined for Angles-Front & Back
2" High Die Rail
Power Ram Adjustment W/Control
Pushbuttons for Start-Stop
Sectional Ram Die Clamps
