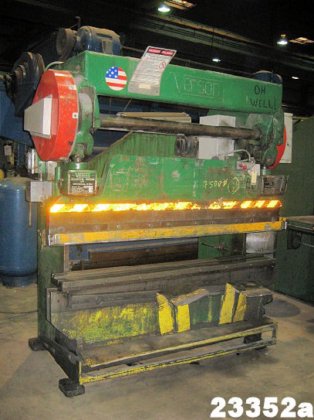

45 Ton, VERSON 2062, 78"X12Gauge
Location:
Memphis, TN
Manufacturer:
N/A
Capacity:
45 Ton
Weight:
7,500 lbs.

Specifications

Condition:
used
Stock number:
1392
Stroke:
2-1/2"
Division:
Metalworking
Voltaage:
230/460/3/60
Main motor:
3 HP
(mild steel):
66" X 10 Gauge
Throat depth:
8"
Width of bed:
4-1/4"
Approx. speed:
40 SPM
Ram adjustment:
3"
Tonnage capacity:
45 Ton
Shut height(sdau):
12"
Floor to top of bed:
28"
Ram adjustment motor:
1/2 HP
Approx. machine weight:
7,500 lbs.
Distance between housings:
62"
Approx. overall dimensions:
97"L-R X 66"F-B X 86"H
Overall length of bed & ram:
78"
Bending capacity(mild steel):
78" X 12 Gauge
Subcategory:
Brakes & folding

Description

Model 2062 S/N 8294
SPECIFICATIONS:
Bending Capacity(Mild Steel)....... 78" X 12 Gauge
(Mild Steel)....... 66" X 10 Gauge
Tonnage Capacity................... 45 Ton
Overall Length of Bed & Ram........ 78"
Distance Between Housings.......... 62"
Stroke............................. 2-1/2"
Ram Adjustment..................... 3"
Shut Height(SDAU).................. 12"
Throat Depth....................... 8"
Width of Bed....................... 4-1/4"
Floor to Top of Bed................ 28"
Approx. Speed...................... 40 SPM
Main Motor......................... 3 HP
Ram Adjustment Motor............... 1/2 HP
Voltaage........................... 230/460/3/60
Approx. Machine Weight............. 7,500 lbs.
Approx. Overall Dimensions......... 97"L-R X 66"F-B X 86"H
EQUIPPED WITH:
Full Length Foot Treadle
Bed & Ram Machined For Angles-Front & Back
2" High Die Rail
Power Ram Adjustment W/Control
Push Buttons for Start-Stop
Sectional Ram Die Clamps
