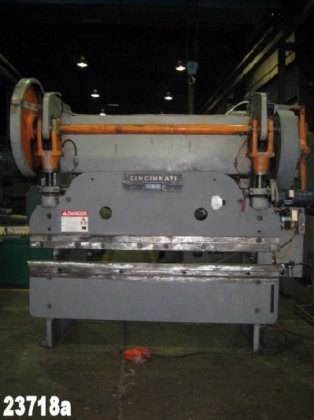

100 Ton, CINCINNATI 4, 1967,
Location:
Memphis, TN
Manufacturer:
Cincinnati
Capacity:
65 Tons Mid-Stroke
Weight:
11,800 lbs.

Specifications

Condition:
used
Stock number:
1403
Stroke:
3"
Voltage:
230/460/3/60
Division:
Metalworking
Main motor:
7-1/2 HP
Throat depth:
8"
Approx. speed:
35 SPM
Widdth of bed:
3.75"
Ram adjustment:
5"
Tonnage capacity:
65 Tons Mid-Stroke
Bending capacites:
8' X 3/16" Mild Steel
Shut height(sdau):
12"
Floor to top of bed:
32"
Approx. machine weight:
11,800 lbs.
Distance between housings:
6'6"
Approx. overall dimensions:
114"L-R X 80"F-B X 105"H
Overall length of bed & ram:
8'
Subcategory:
Brakes & folding

Description

Model 4X6 S/N 23718
SPECIFICATIONS:
Bending Capacites...................... 8' X 3/16" Mild Steel
...................... 4'6" X 1/4"Mild Steel
Tonnage Capacity....................... 65 Tons Mid-Stroke
....................... 100 Tons Near Bottom
Overall Length Of Bed & Ram............ 8'
Distance Between Housings.............. 6'6"
Stroke................................. 3"
Ram Adjustment......................... 5"
Shut Height(SDAU)...................... 12"
Throat Depth........................... 8"
Widdth of Bed.......................... 3.75"
Floor to Top of Bed.................... 32"
Approx. Speed.......................... 35 SPM
Approx. Machine Weight................. 11,800 lbs.
Approx. Overall Dimensions............. 114"L-R X 80"F-B X 105"H
Main Motor............................. 7-1/2 HP
Voltage................................ 230/460/3/60
EQUIPPED WITH:
Air Actuated Mechanical Clutch
Electric Foot Switch
2.25" High Die Rail
Ram Machined For Angle-Front
Bed Machined For Angle-Front & Back
Pushbuttons For Start Stop
Automatic Oil Lubrication
Sectional Ram Die Clamps
4) T-Slots in Top of Bed
Dove Tail Slots in Front & Back of Bed
