Toyoda GU4-100, New 1999, OD/Angle/ID
Location:
Troy, MI
Manufacturer:
N/A

Specifications

Condition:
used
Stock number:
011010
Division:
Metalworking

Description

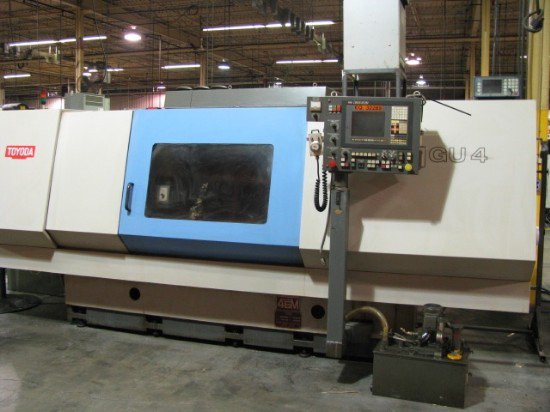

TOYODA GU4-100 CNC UNIVERSAL GRINDER
NEW 1999/2000
12" Swing
40" Distance Between Centers
3-HEAD DESIGN (ANGLE, STRAIGHT AND INTERNAL GRINDING WHEELS) , MANUAL SWIVEL
CATALOG SPECIFICATIONS
Swing Over Table 12.5"
Distance Between Centers 39.4"
Maximum Grinding Diameter 11.8"
Wheel #1 (OD x W) 18" x 1.5"x 5"
Wheel #2 (OD x W) 18" x 3" x 5"
Wheel #3 Internal
Wheel Surface Speed 8,500 sfpm
Work Speed (variable) 10 - 500 rpm
Wheel Drive Motor 7.5 hp
Work Drive Motor 1.5 hp
Floor Space 163" x 84.5"
Weight 11,440 lbs
EQUIPPED WITH:
Three Position Grinding Wheelhead, Manually Indexable Air Lift, Curvic Coupling Lock Down
Lateral Locating Gauge (Shoulder Gauge)
Sizing Gauge
Barnes Coolant System
