13" x 40", Studer, No.
Location:
Troy, MI

Specifications

Condition:
used
Stock number:
121812
Division:
Metalworking

Description

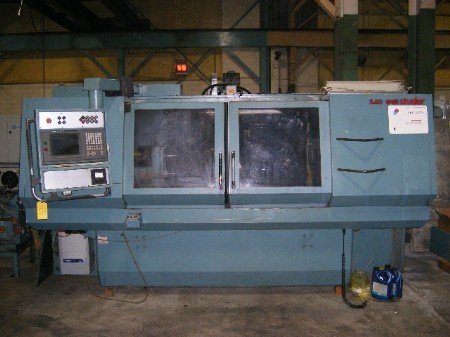

STUDER S-40 UNIVERSAL CNC CYLINDRICAL GRINDER
New 1993
Serial Number 11053.09
6.9" Center Height
39.4" Distance Between Centers
10.8" X-Axis Wheelhead Travel
41.4" Z-Axis Table Trvel
20" Dia x 2" Wide x 8" Bore Right Side Grinding Wheel, Currently Using CBN Wheel
Automatic Wheelhead Swivel, -15/ 195 Degrees, Positioning 5 Degrees
X and Z Axis Heidenhain Glass Scales
Grinding Wheel Frequency Converter, Load Meter Monitor
Table Mounted Rotary Dresser
Tailstock, 3 Morse Taper, Taper Fine Adjustment
Mist Collector
Coolant System, Coolant Chiller System
Fanuc 16GC CNC Control
