Hardinge Elite 851, Fanuc 18iTB,
Location:
Troy, MI
Manufacturer:
Fanuc lathes

Specifications

Condition:
used
Serial number:
ML-272
Stock number:
100312
Division:
Metalworking

Description

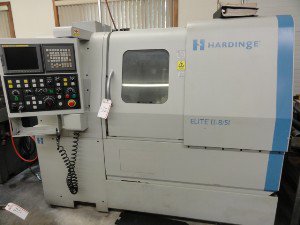

Hardinge Elite II-8/51 CNC Horizontal Lathe, Model ML, Live Tooling, Sub-Spindle
New 2005
Serial Number: ML-272
CATALOG SPECIFICATIONS:
Swing Over Bed 21"
Maximum Cutting Diameter 13.4"
Maximum Machining Length 14"
Maximum Bar Capacity 2.00"
X-Axis Travel 8.25"
Z-Axis Travel 14"
Rapid Traverse Rates X / Z 1,181 IPM
X and Z-axis Lenear Guideways and Ball Screws
12-Position Turret, Live Tooling, Rotary Tool Speed 50-5,000 RPM, 5 HP
Spindle Nose A2-6 20C Collet, Bore 2.5", Speeds 50 - 5,000 RPM, Spindle Motor 15 HP, C Axis Indexing .001 Degree, 2" Bar Cap., 8" Chuck Cap
Subspindle Nose A2-5 16C Collet, Speeds 6,000 RPM / Subspindle Motor 5 HP, C Axis Indexing .001 Degree, 1 5/8" Bar Cap., 6" Chuck Cap
Subspindle Travel 15 1/2"
Hardinge Patented Jaw Chuck/Collet Ready Spindles
230V, 3-Phase, 50/60Hz, 100FLA, 115/24 Control Volts, Spindle Drive 44-AMPS
GE Fanuc Series 18I-TB Programmable Control Unit
Told Total Running Time 1,651.55-Hours
