Top Seller

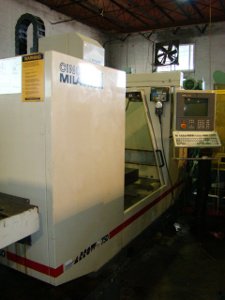

30"X, 20"Y, 20"Z, CINCINNATI, No.
Location:
Hialeah, FL

Specifications

Condition:
used
Stock number:
6340
Division:
Metalworking

Description

Model number Arrow 750
Year of manufacture 1997
SPECIFICATIONS:
Work Area 20.5" X 37.43"
Maximum long. X-axis 30.8"
Cross travel, Y-axis 20.8"
Vertical travel, z-axis 20.8"
Spindle nose to table top, min-max 5" - 25"
Table load capacity 1,650 lbs
Spindle drive motor (max/cont) 17 / 12 HP
Spindle speed range min - max 60 to 8000 RPM
Spindle taper CAT #40
Feed-rates, X & Y & Z 590 IPM
Rapid traverse rate 1180 IPM
Tool changer number of tools 21
Tool selection Bi-directional
Tool holder weight 15 lbs
Tool length 15"
Electrics 220/440/3/60 HZ
Machine net weight 7,275 lbs
Overall dimensions (L x W x H) 110" x 83" x 107"
EQUIPPED WITH:
Acramatic 2100 touch screen control, Remote pendant control
Renishaw probe and MP12 system, Worklight, Coolant system
3-1/2" floppy drive, RS232, Vise and sub-plate
