Top Seller

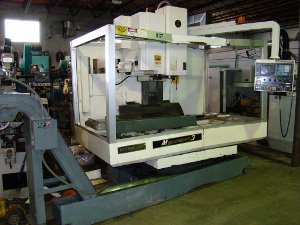

32.9"X, 18.7"Y, 18.1"Z, KITAMURA, #MYCENTER-3,
Location:
Hialeah, FL
Manufacturer:
OM machining centers

Specifications

Condition:
used
Stock number:
6260
Division:
Metalworking

Description

Model number Mycenter-3
Year of manufacture 1993
SPECIFICATIONS:
Table size 43.3" X 20.6" (1100 x 522mm)
Maximum table load 1,3200 lbs. (600 kg)
Table travels--Longitudinal (X-axis) 32.9" (835mm)
--Cross (Y-axis) 18.7" (475mm)
--Vertical (Z-axis) 18.1" (460mm)
Spindle drive motor 20 HP (15 KW)
Spindle speed range min - max 20 to 8,000 RPM
Spindle taper BT40
Feed rates--X & Y axis 0 to 1181 ipm
--Z axis 0 to 944.9 ipm
Rapid traverse rate, all axis 0 to 1417 ipm
Tool storage capacity 30 tool swing arm
Way system box ways
Electrics 220/3/60 HZ
Machine dimensions (L x W x H) 112" x 114" x 110"
Machine weight, approx 15,880 lbs. (7200 kg)
EQUIPPED WITH:
FANUC O-M control, Rigid tapping, Chip conveyor, RS232 port
Automatic lubrication system, Fully enclosed splash guard
